Parts References 3: Pictures with factory part numbers

This is page 3 of "Parts References" which will show pictures of parts found on the 1970 Plymouth GTX or Roadrunner with a corresponding factory part number.  This might prove helpful as one tries to obtain that missing part for their car.  Click on each small picture to view enlarged picture.


4spd floor console
1970 had woodgrain on top


4 spd shifter mechanism


727 auto transmission
inspection/ access cover


GTX woodgrain above
the glovebox dash piece
with red GTX emblem


Standard AM radio


ballastic resistor
pn2095501


headlight dimmer switch
carpet bezel


Disc Brake proportioning valve


Chrome exhaust tip hangers


Roadrunner RT headlight grill bezel
pn2998010 or 2998012


complete Roadrunner grill pieces


Roadrunner LH headlight grill bezel
pn2998011 or 2998013


Drivers side trunk repro trunk floor


383 gas filter with Calif. emissions
Note the three nipples


Front bumper rubber guards


Bench seat back release knob


complete accelerator assembly


383 hp gas tank sending unit for 5/16" gas line
NOTE: 440 hp sending unit will have 2 tubes & 3/8" gas line


Hemi/6bbl throttle solenoid


complete hemi motor mounts


hood insert for turn signal option
pn2998043


hood release latch aseembly


kick panel insulation


LH exhaust manifold
pn2951865


manifold heat control assembly
pn3520045


Underdash map light
NOTE: only with light package option


Parking brake signal switch


Pedal dress pieces
NOTE: 1970 brake/clutch piece
does NOT have the center bar


Center Ralleye dash piece
with 4 spd reverse light opening


Roadrunner grill "Plymouth" emblem


Power steering gear box value assembly pn2637997


GTX radio delete faceplate


14" or 15" Ralleye wheels
NOTE: center piece should be light argent silver for 1970
Trim ring is not shown


Ralleye speedometer pn 2857163


Rear window defrost unit


Road wheel center dome decals


automatic brake pedal pad


Clock for NON-Ralleye dash
adjustment knob not shown

'


4 spd shifter boot bezel


4 spd shifter mounting plate-
bolts to side of transmission


Exhaust pipe/muffler hanger


window crank pieces (2)


airgrabber hood actuator


door jam dome light switch


440/426 muffler


"dog dish" basic hubcap


Ralleye dash oil pressure gauge


Ralleye dash fuel gauge


trunklid & quarter panel          "road"  "runner" stick-on emblem & RT rear extension bird decal

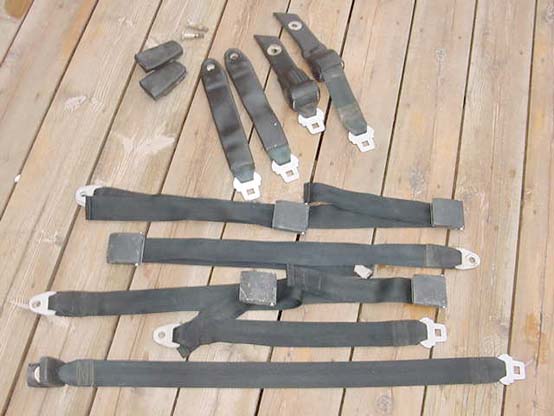

complete seat belt set up


windshield washer reservior pump


383/440/426 HP fan clutch
pn 2806070


under-trunklid reinforcing bracket
for Go-wing
pn 3506474-5


1970 Go-wing


440-4bbl HP intake
pn 2951736


AM/ 8 track stereo radio unit



back window chrome trim clips


bottom of 70 Plymouth B-body center section grill clips- 3 per  grill
(helps keep grill in place)
pn 3443540


front floor bucket seat (only) reinforcement brackets


clock/tach wiring harness
pn 2889394


dash voltage regulator
pn3592899


plastic interior door lock knobs


driver's side thin chrome trim for Satellite/RR/GTX headlight bezel
(2 identical pieces shown in picture)


driver's side lower control arm
pn2535879


front bumper splash shield


front windshield trim clips
ten of clip #1, 14 of clip #2 needed


front center steering link
pn 1858015


front fender brace
Note: bolt broken off in brace on
right end


pair of hood hinges-all B-bodies


hood safely latch
pn2486697


Remote outside dr. side door mirror
interior adjusting knob bezel


Remote outside dr. side door mirror


AM radio knobs
NOTE: AM/FM knobs slightly different than AM radio knobs


power top / rear defogger switch
Note: just rotate switch unit around under dash to use for other purpose


4 speed reverse indicator dash light

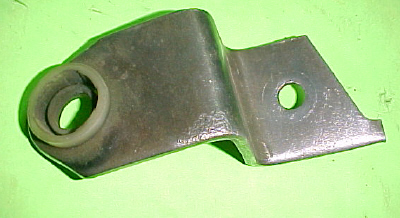

reverse lock linkage dr. side frame bracket


trunk latch mechanism


turn signal lever


Hood mounted turn signal bulbs    pn 2535879


under-steering wheel dash cover
Note: RR/GTX cover pn2984717 is
NOT the same shape or size as the Satellite/Sport Satellite one shown in picture above which is pn2984713


woodgrain instrument cluster end caps
pn 2927870-1
picture shows RH or pass. side part



woodgrain steering wheel center horn pad (shown with Dodge center emblem-not the Plymouth one)
